Technical specification

Operating temperature range of 20-25 °C
Humidity 45-85%

Do not use near strong electromagnetic field sources

Minimum hardware requirements for RSQ Motion Analytics:
• Computer System: Windows 10 or higher, Mac Yosemite,
Linux - 16.04 or higher
• 4 GB RAM minimum
• Graphics card with OpenGL 3.2+ support
• Disk: at least 2 GB of free space

Minimum hardware requirements for the RSQ Physio app:

Android:
• Android 5.0 or higher
• the recommended screen size for phones is at least 5"
• the recommended screen size for tablets is at least 8"
• minimum 2GB of RAM
• support for BLE 4.2 or higher

IOS:
• system iOS 11.0 or higher
• support for BLE 4.2 or higher

Measurement accuracy:

• roll axis: 0.3°
• pitch axis: 0.3°
• yaw axis: 1 °

Dimensions:

• diameter 43 mm
• height 20 mm

Run time on a single battery charge:
up to 8 hours
Battery life:
500 charging cycles
Power source:
Rechargeable lithium-ion battery
Charging voltage and current:
5V, 90mA

Dimensions:
• diameter 43 mm
• height 20 mm
Weight:
21 g

Run time on a single battery charge:
up to 8 hours
Battery life:
500 charging cycles
Power source:
Rechargeable lithium-ion battery
Charging voltage and current:
5V, 90mA

Dimensions:
• length 52 mm
• width 23 mm
• height 11 mm
Weight:
10 g

Power source:
USB port
Charging voltage and current:
5V, 25mA

Dimensions:
• length 103 mm
• width 57 mm
• height 60 mm
Weight:
• 103 g

Run time on a single battery charge:
Ability to charge a pair of devices twice in any configuration
Battery life:
500 charging cycles
Power source:
Rechargeable lithium-ion battery
Charging voltage and current:
5V, 700mA

Content of the package

RSQ Motion Sensor x3
RSQ Motion Clicker

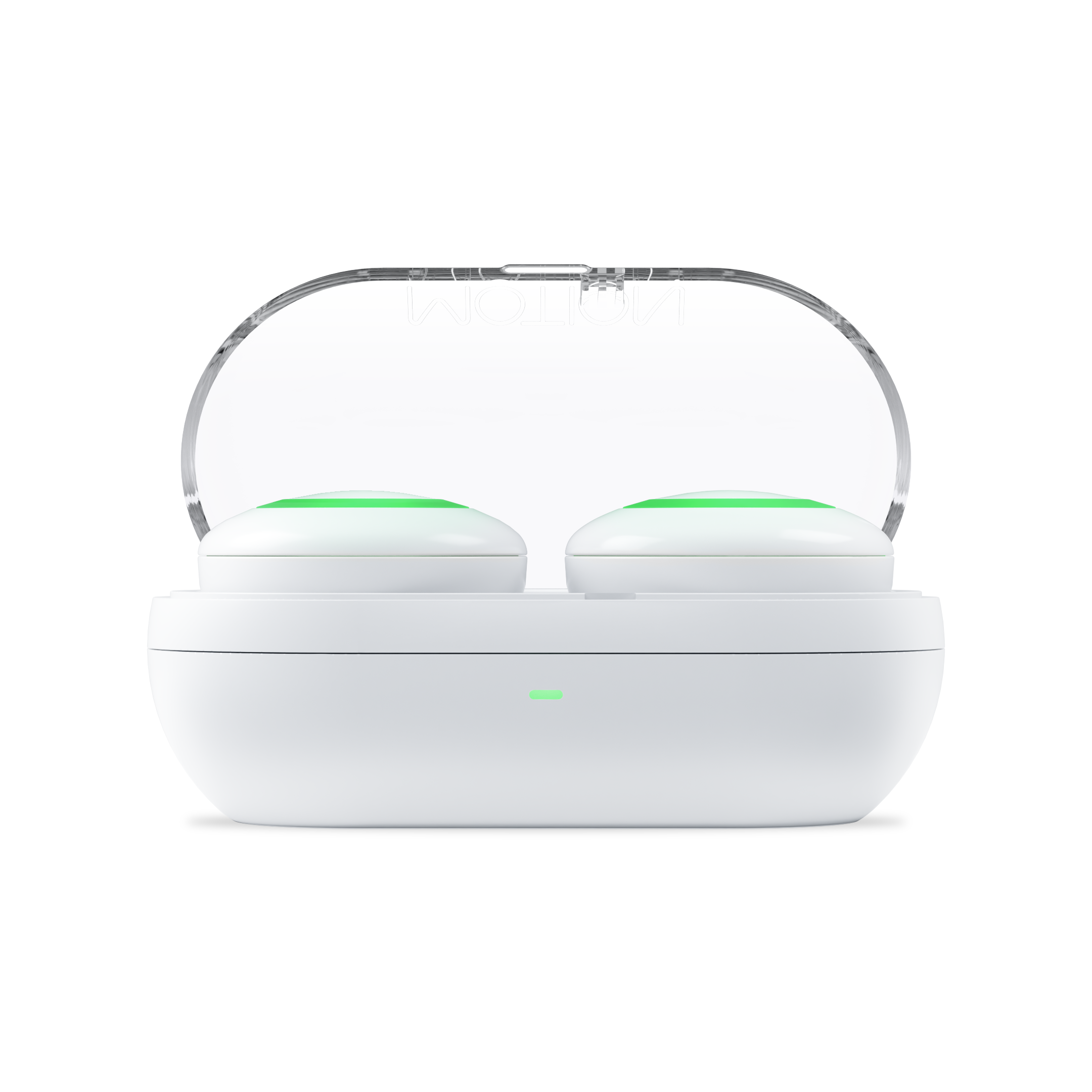

RSQ Motion Travel Etui x2
RSQ Motion Hub
RSQ Motion Bands x2

• 30 cm
• 60 cm
• 120 cm
RSQ Motion Stickers (20 pcs)
USB-C cable

Kits

RSQ Motion 1+1

RSQ Motion Sensor and RSQ Motion Clicker
3 499 PLN
2 999 PLN
gross*

• Proprioception examination: shoulder, elbow, knee, hip

Pre-order

RSQ Motion 2

Two RSQ Motion Sensors
3 499 PLN
2 999 PLN
gross*

• Motion analysis in one joint: range of motion, range of motion amplitude, angular velocities, number of moves, frequency

Pre-order

RSQ Motion 3+1

Three RSQ Motion Sensors and RSQ Motion Clicker
6 998 PLN
5 998 PLN
gross*

• Proprioception examination: shoulder, elbow, knee, hip
• Motion analysis in one joint: range of motion, range of motion amplitude, angular velocities, number of moves, frequency
• Motion analysis in two joints simultaneously

Pre-order

How to use the 3+1 kit?

It is used to measure multiple parameters in two joints simultaneously. For example: range of motion, angular velocities, number and frequency of movements. It also allows you to record the movement of one limb in RSQ Motion Analytics app, which can be used for deeper analysis of the moves performed. This kit can be also used to examine the patient’s joint proprioception.

Contraindications

The examination should not be performed if there are wounds, abrasions or other skin lesions in the area where RSQ Motion Sensors are to be placed.
Moreover, RSQ Motion should not be used by patients using medical devices that support vital functions and which work wirelessly in the 2.4 GHz frequency band (e.g. using the Bluetooth protocol).
Before use, read the instructions for use and the label.
